Product Description

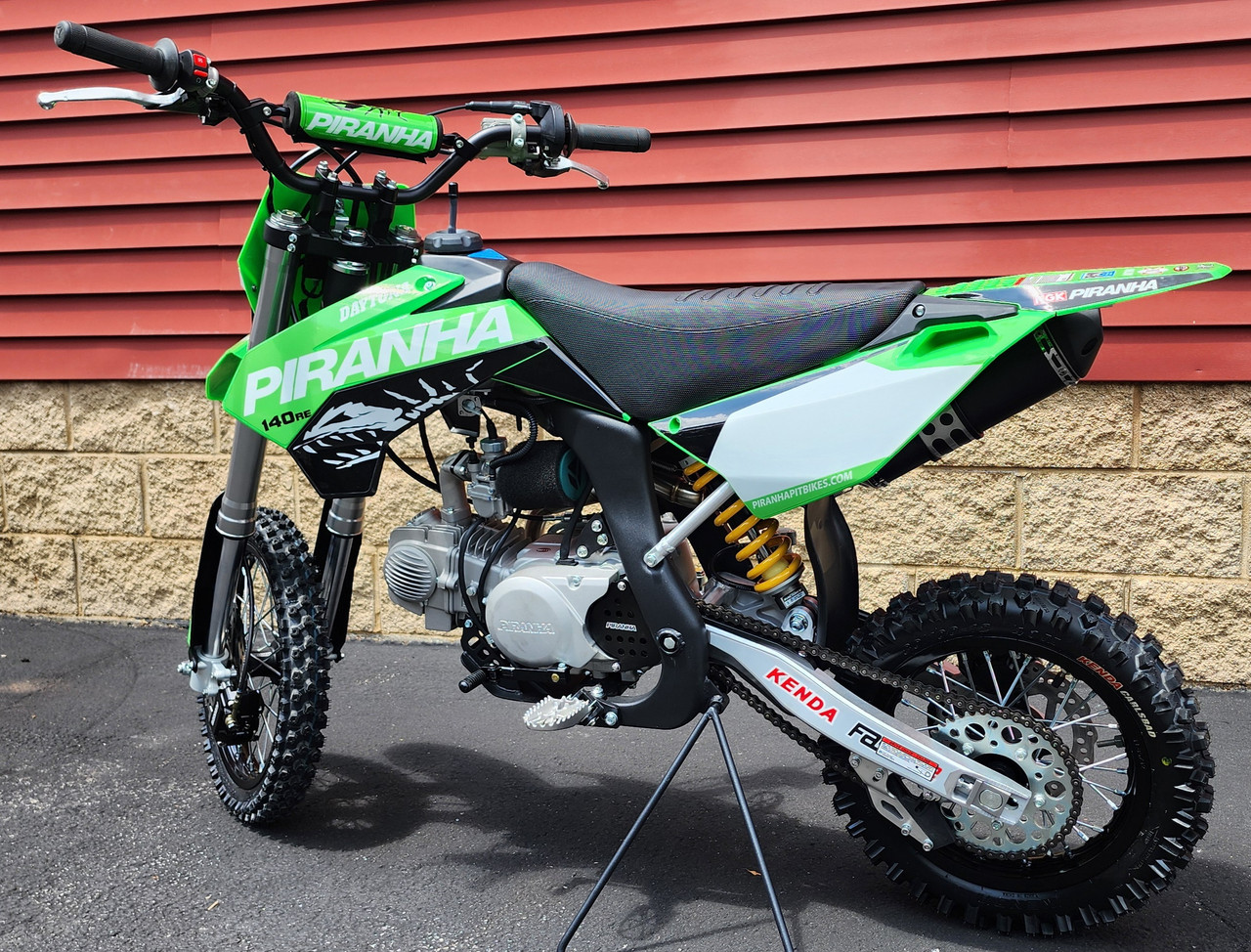

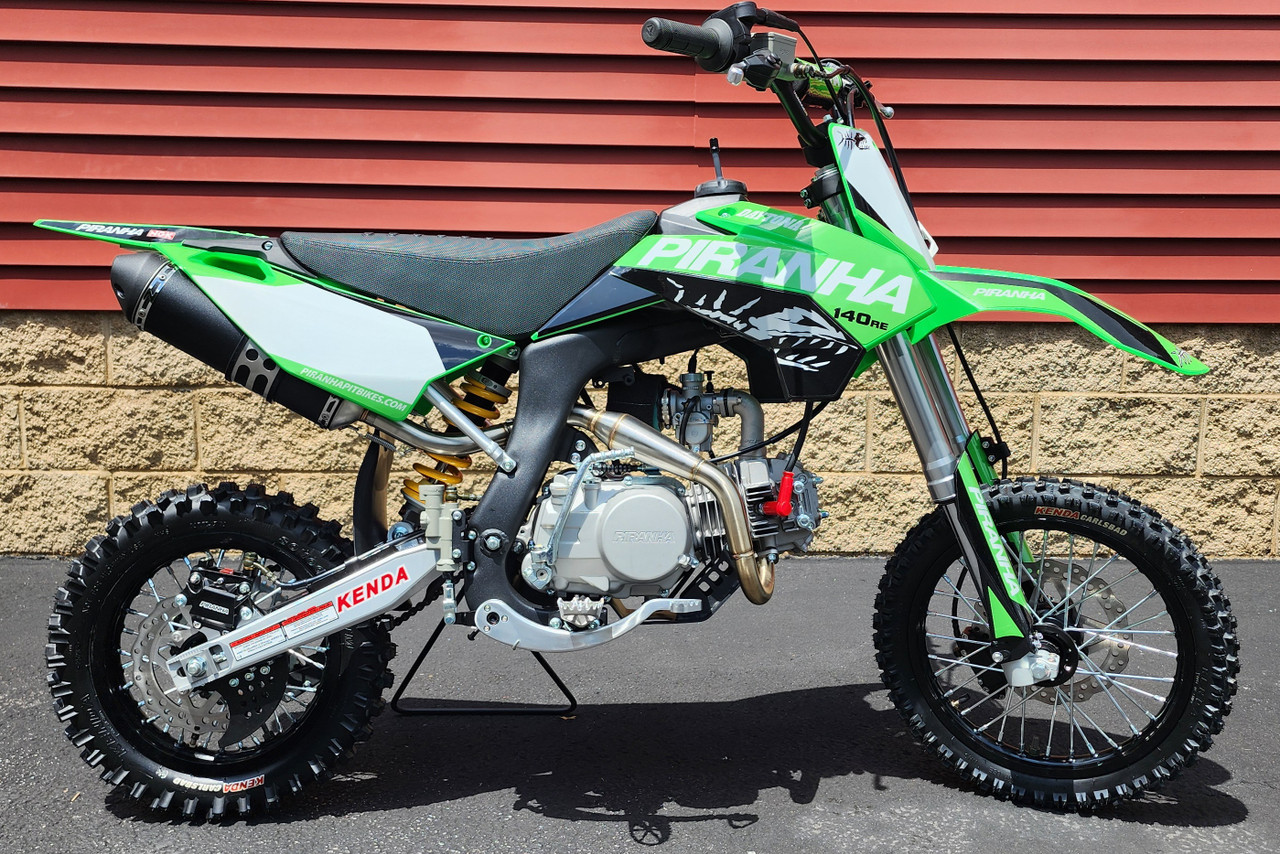

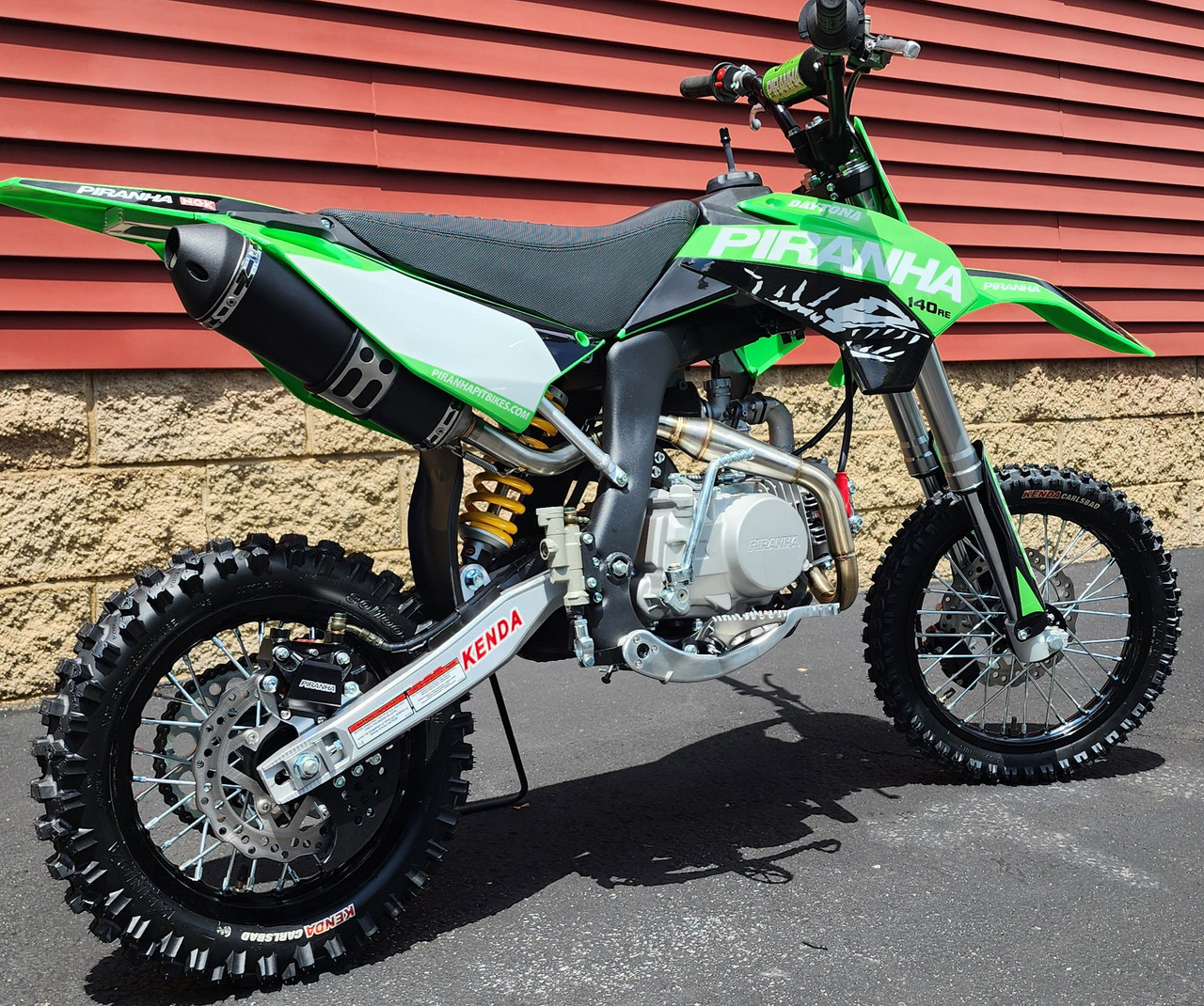

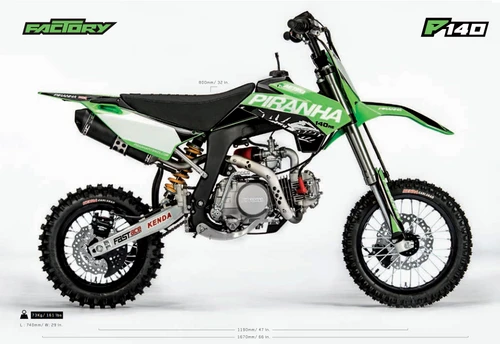

2023 PIRANHA P140RE is HERE!

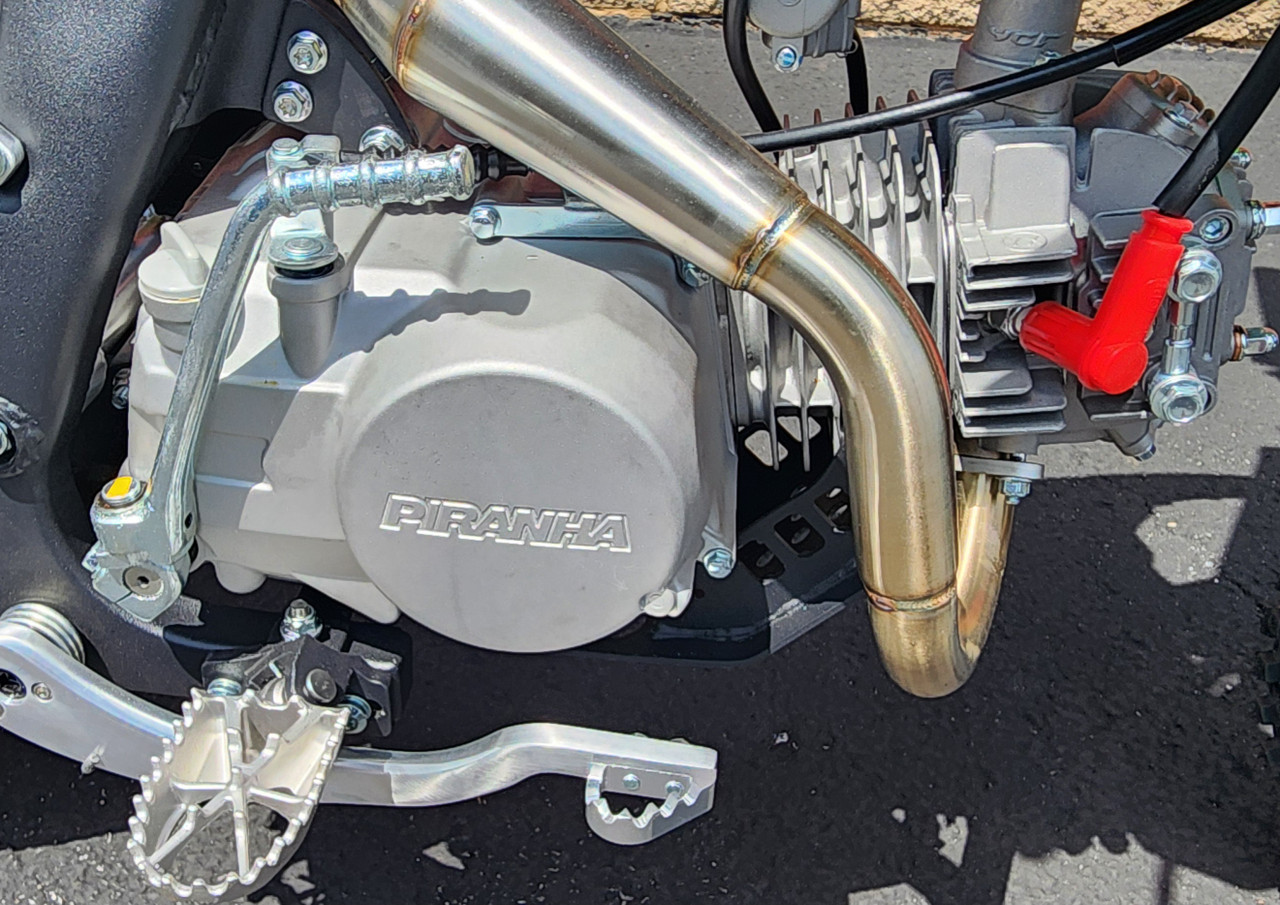

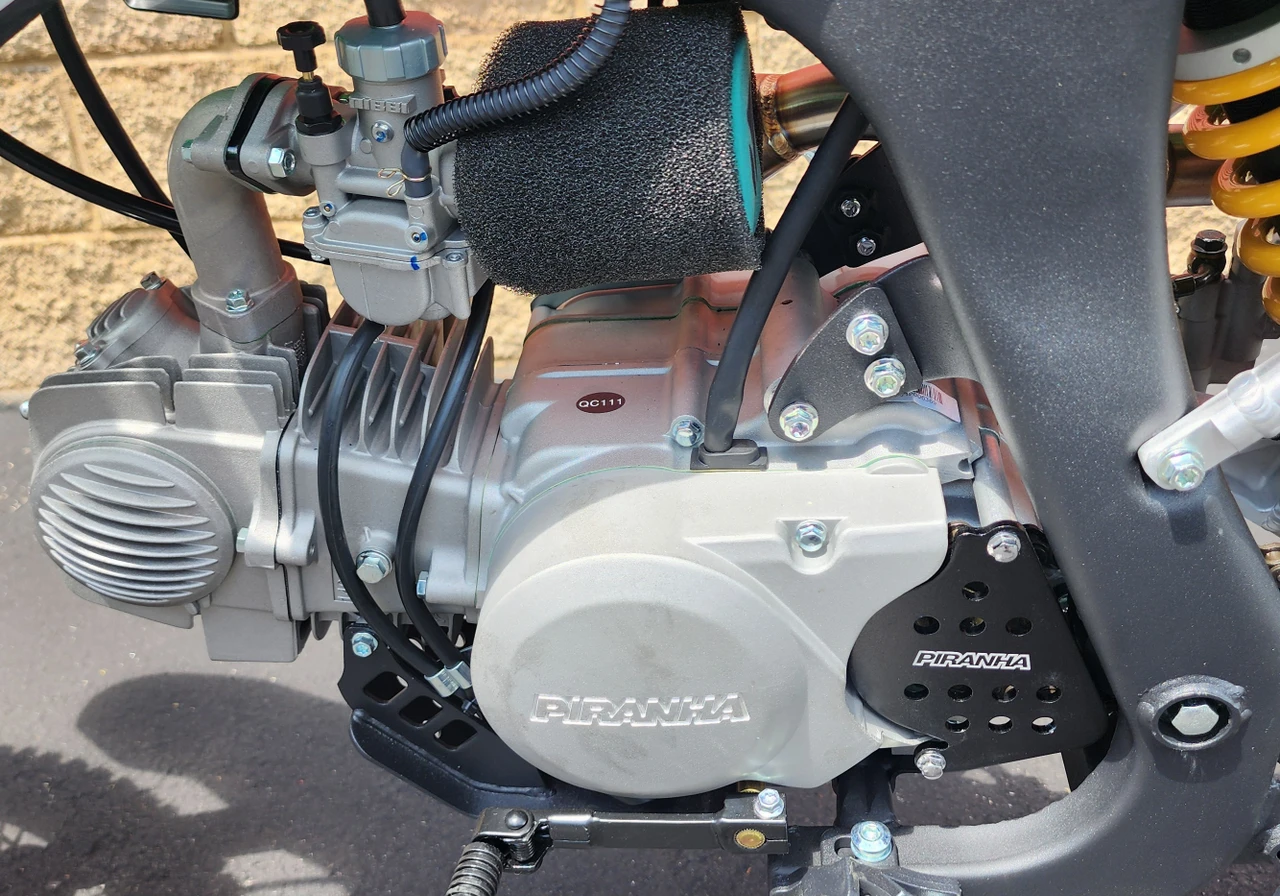

- Powered by The YX140 - The MOST POPULAR Pit Bike Engine on the Market!
- Latest 140cc from PIRANHA
- Ultimate Top-Level Components & Unmatched Performance!
- Aluminum Sub-Frame

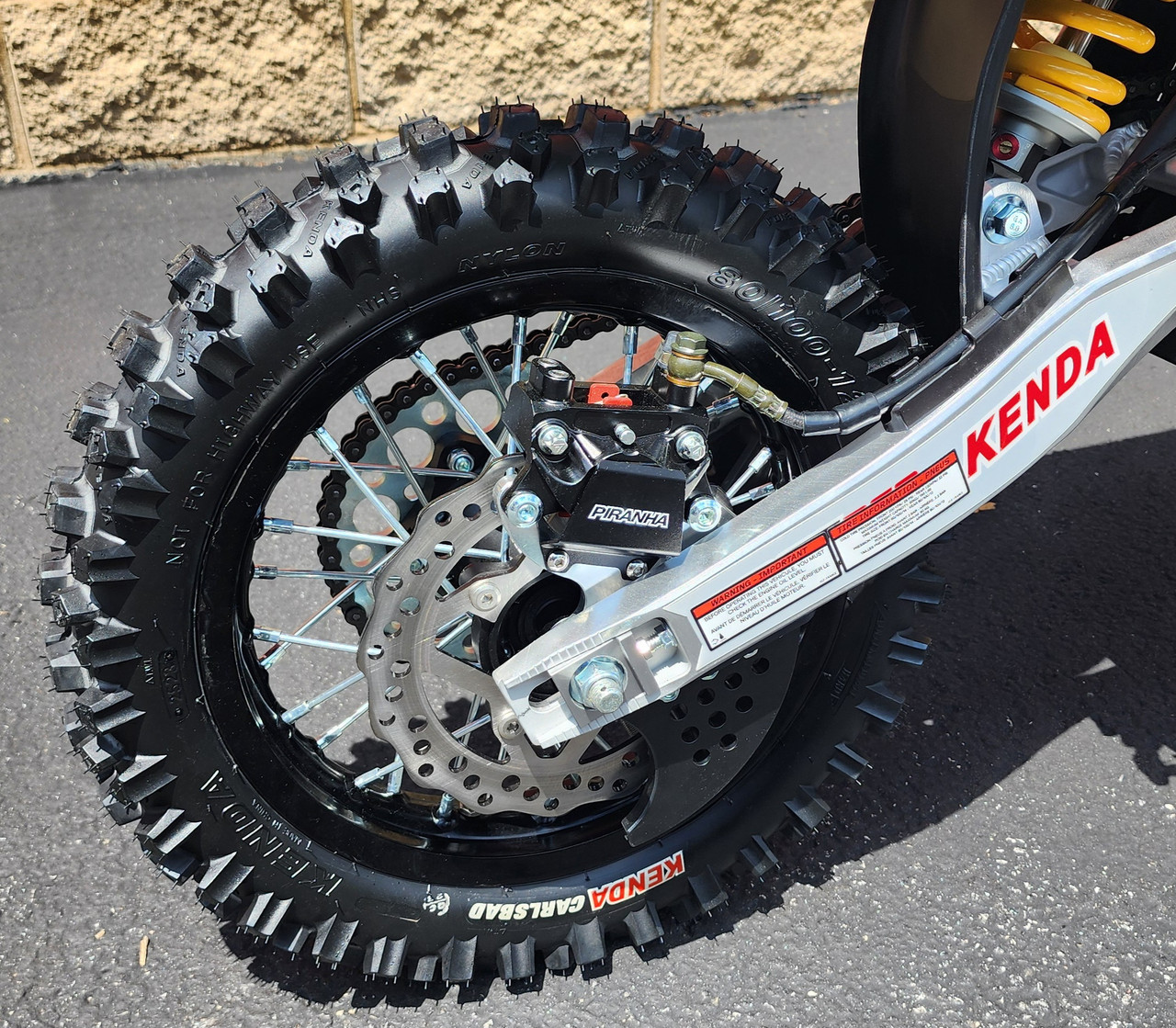

- Billet Aluminum Brake Systems (Front & Rear)

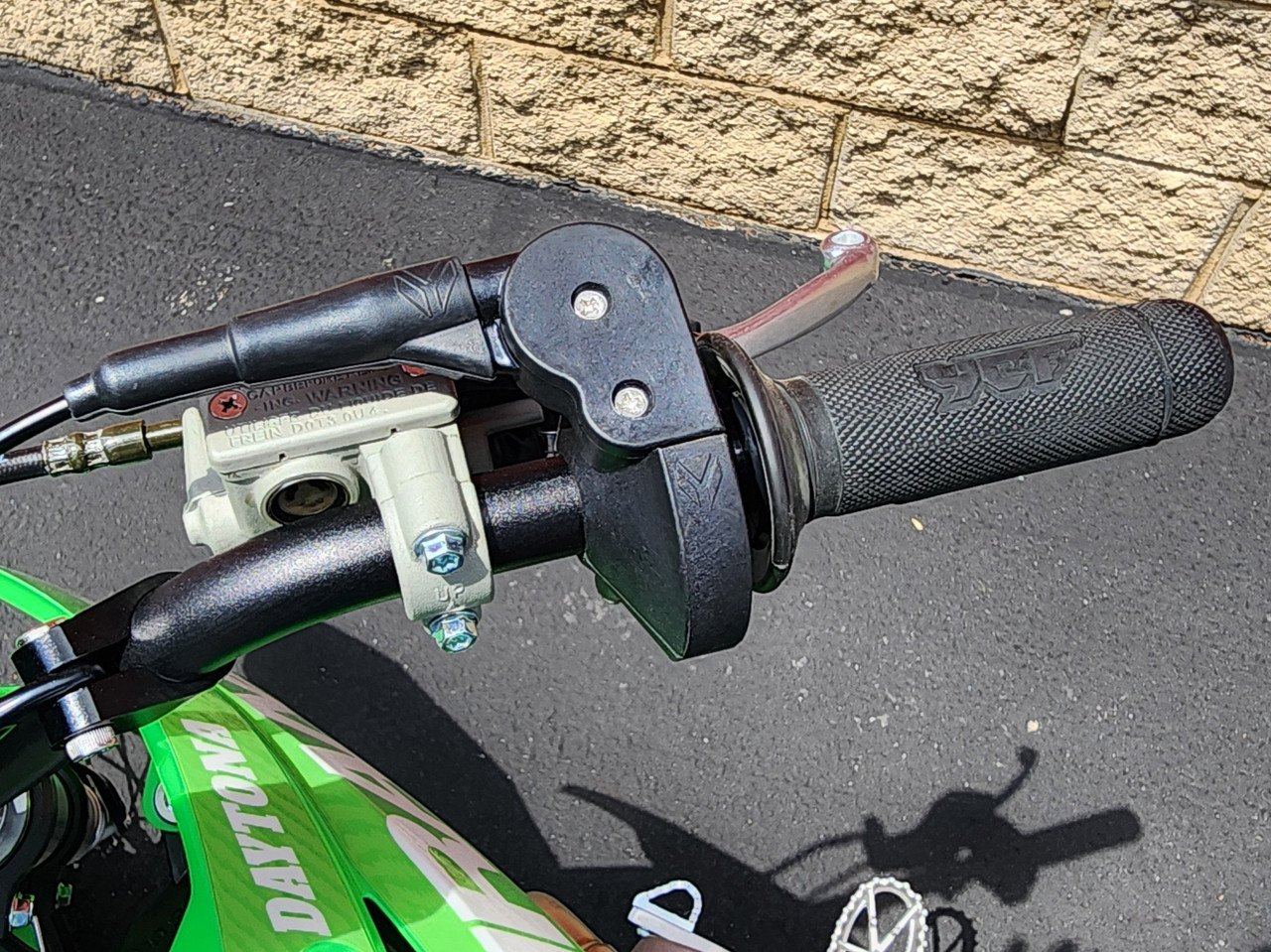

- Improved Throttle Assembly
- Slimmer & Lighter Gas Cap
ALL PIRANHA MOTORCYCLES ARE DESIGNED & INTENDED EXCLUSIVELY FOR COMPETITION USE ONLY.
| GENERAL | |
| MANUFACTURER | PIRANHA |
| MODEL | P140RE |

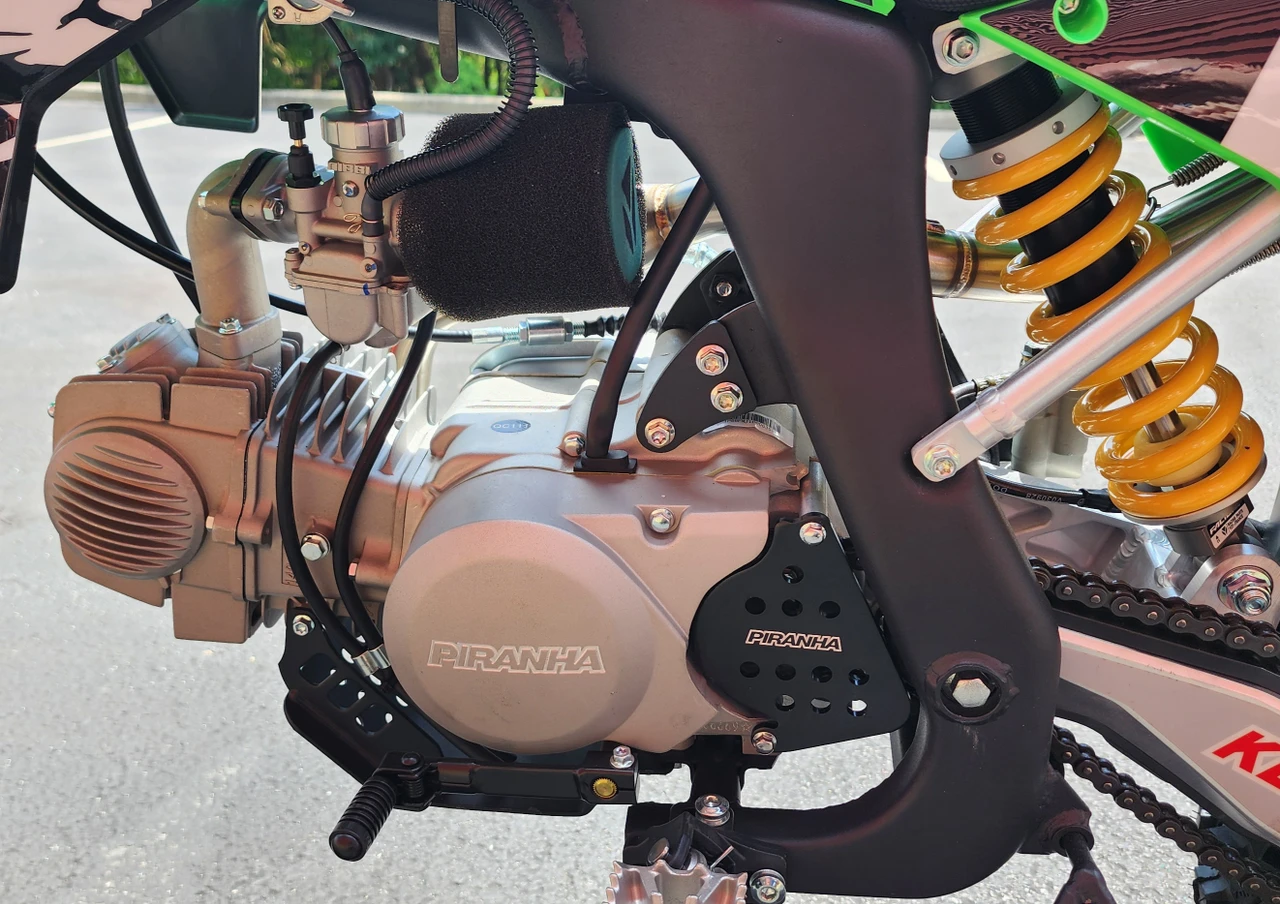

| ENGINE | |
| DISPLACEMENT | 140CC |
| ENGINE TYPE | AIR COOLED, SINGLE CYLINDER, 2-VALVE 4-STROKE |
| BORE/STROKE | 56MM X 57MM |
| FINAL DRIVE | CHAIN |
| FUEL DELIVERY | NIBBI 22MM |
| FUEL | UNLEADED |
| RECOMMENDED ENGINE OIL | 10W-40 PETROLEUM BASED (NON-SYNTHETIC) |
| IGNITION | |
| KICK START | YES |
| ELECTRIC START | NO |
| CDI | YES |
| AUXILIARY | YES |
| TRANSMISSION | |
| TRANSMISSION | 4-SPEED MANUAL |
| SHIFT PATTERN | FOUR-UP N-1-2-3-4 |
| CLUTCH | WET CLUTCH |
| DRIVE | |
| CHAIN PITCH | 420 |
| FRONT SPROCKET | 15 TOOTH |
| REAR SPROCKET | 45 TOOTH |
| CHASSIS | |
| FRONT SUSPENSION | 730MM ZL |
| REAR SUSPENSION | 330MM ADJUSTABLE REAR SHOCK |
| SWING ARM | ALUMINUM |
| FRAME | STEEL |
| WHEELS | |
| RIMS | 7116 ALUMINUM |
| HUBS | BILLET ALUMINUM |
| FRONT WHEEL | 14" |
| FRONT TIRE | 60/100-14 KENDA CARLSBAD |
| FRONT BRAKE | DISC |

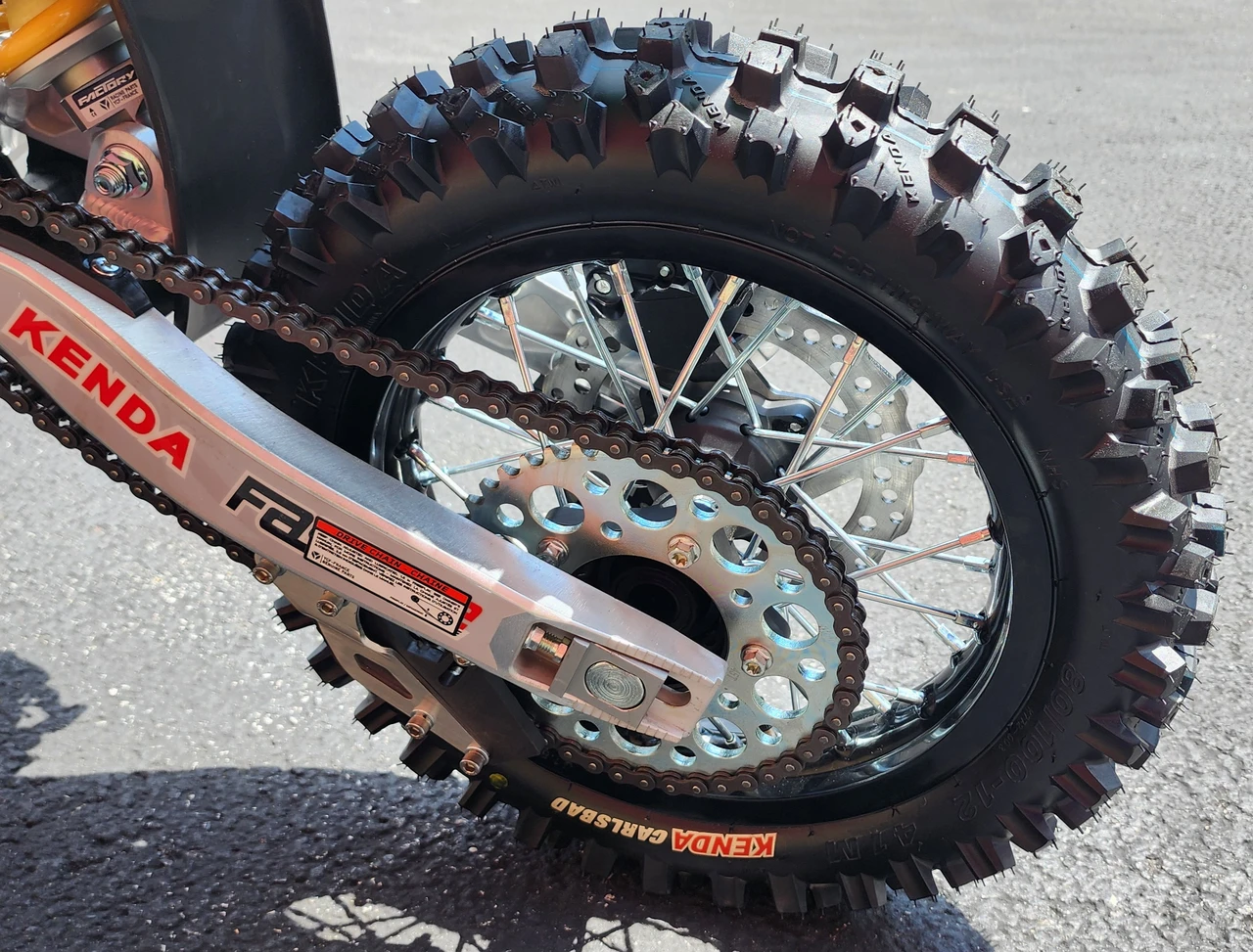

| REAR WHEEL | 12" |
| REAR TIRE | 80/100-12 KENDA CARLSBAD |
| REAR BRAKE | DISC |
| DIMENSIONS | |
| WHEELBASE | 47 INCHES |
| SEAT HEIGHT | 31.50 INCHES |
