Product Description
PIRANHA Pit Bikes and Wholesale-Cycle are proud to announce the The DAYTONA 190-FLX!

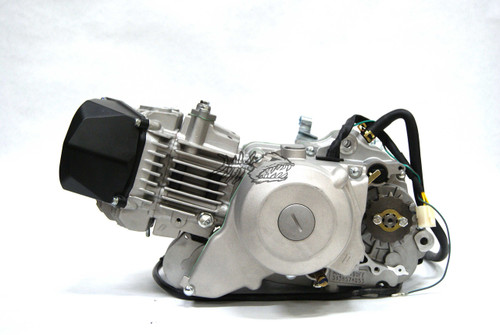

This 4 valve, 62mm bore x 62 mm stroke engine is the newest edition directly from Daytona Motor Co. The new FDX-190 comes stock with an updated close ratio transmission, an AUTO-DECOMPRESSION CAMSHAFT and reinforced crankcases.
The FLX motor is manufactured and assembled as a 190 at the Daytona factory.

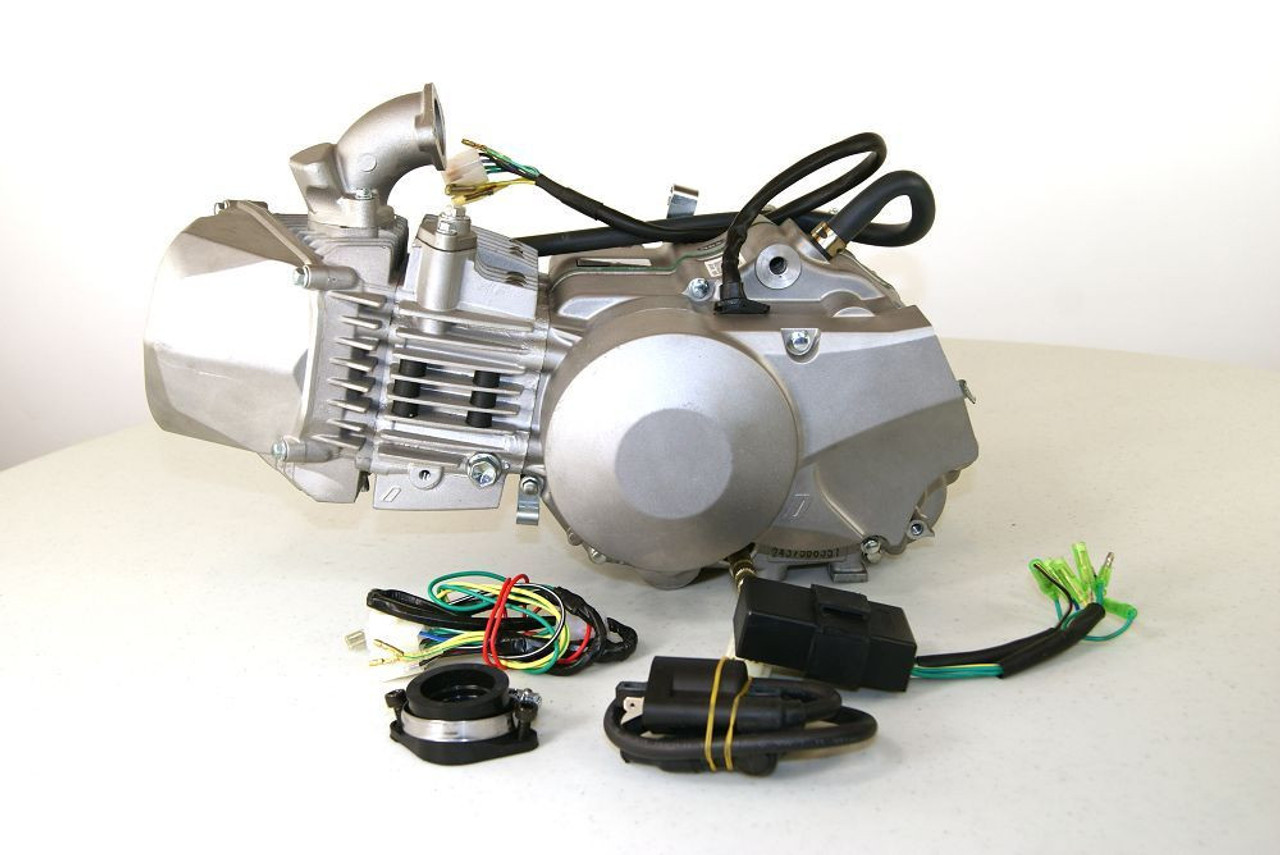

Includes:
(1) Daytona FLX 190 engine
(1) Intake Manifold
(1) Wire Harness
(1) CDI:
(1) Ignition Coil
(1) Intake Manifold Carb Boot
*Daytona crate engines do not come with any warranty*
Users manual available here https://daytona-global.com/products/pdf/87044.pdf
FLX is same as FDX, but now includes headlight coils!!!
Starting pit bike engines will take some practice. All pit bike engines have relatively high compression ratios and require a "quality over quantity " approach in order to ensure quick start ups and avoid mechanical mishaps. It is important follow this routine the first few times when first attempting to start your bike.
- Slowly kick engine over until the kick start reaches a compression stroke (the point in which the kick start lever is hardest to push down.)
- Slowly continue to press the kick starter until the engine rotates slightly through the firmest point in the compression stroke.
- Allow the kick start lever to return back its top rest position
- With a quick and balanced motion - Move down forcefully on the kick lever. These motors need a strong, quick kick to get started.
- If you fail to follow this procedure, especially with longer stroke engines or 125cc + bores you can cause serious damage to your crankcase, clutch and transmissions assemblies!
Tips to Avoid kickback
- Hold onto the crossbar pad with your throttle hand while kicking the bike over to avoid twisting the throttle open by accident
- Before start up - turn the idle screw on the carburetor in a turn or 2 (turn the screw back out to normal idle setting once running.)
- Use a digital CDI with variable ignition timing at start-up, this will help reduce kick back and allow the bike to start much easier compared to the stock CDI unit.
- If ignition timing is adjustable it should be adjusted to the minimum
- Furious, repeated kicking will not get the engine started - firm, full stroke kicks are the only way to get them to start first kick, every time "Quality over Quantity"
- Throttle must be completely closed when you kick the engine over or it will kick back EVERY TIME.
- A small blip of the throttle maybe used when the engine is hot if required but NO more than 10 ° opening of the throttle in any case!
